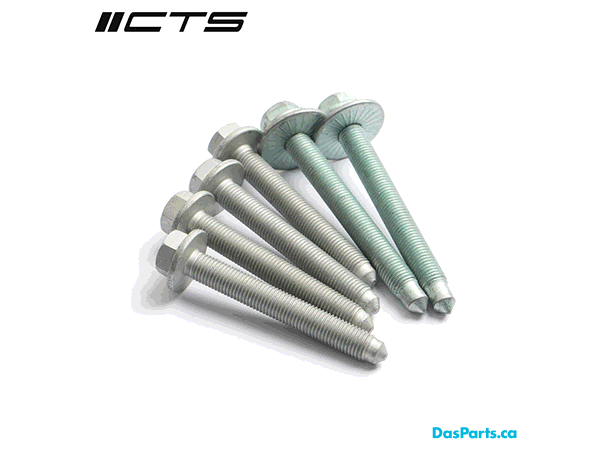

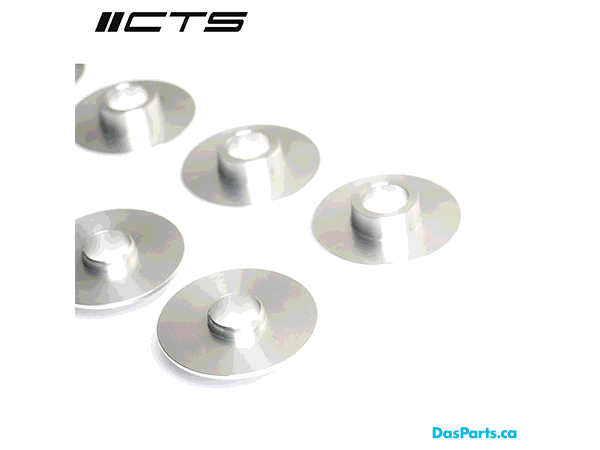

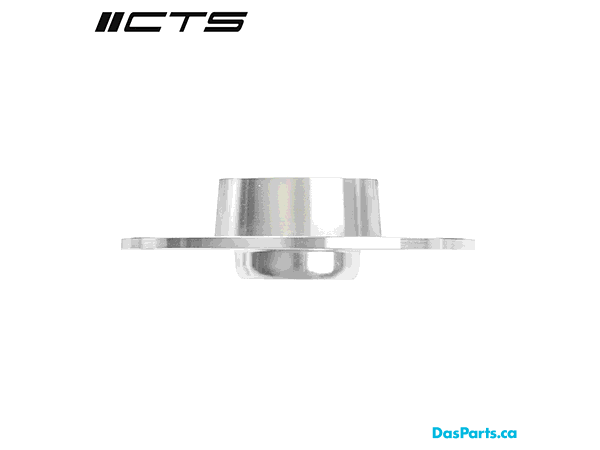

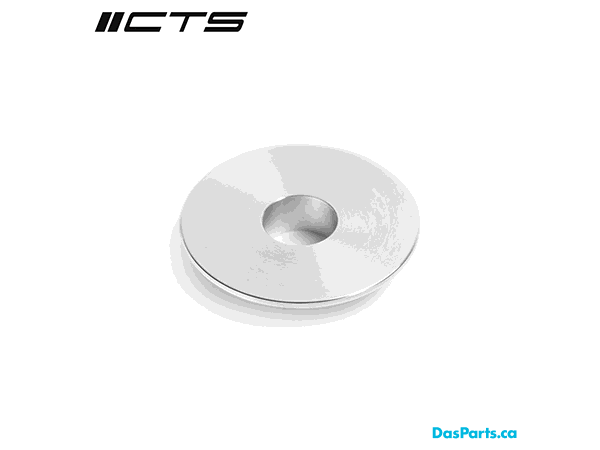

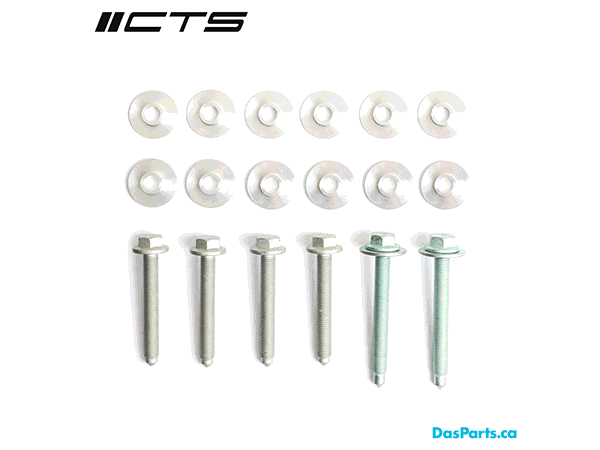

CTS Turbo Billet Subframe Bushing Insert Kit This kit is designed to eliminate the clunk that is commonly found on MK5’s and MK6’s due to the stretching of OEM bolts ultimately stretching and failing. This kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points. Features: Interlocking subframe shims center the subframe to the body Machined in house from T6061 Billet aluminum OE replacement stretch bolts Eliminates subframe clunks and shifting Kit Components: 6 x Upper Insert 6 x Lower Insert 4 x Short OE Bolts 2 x Long OE Bolts Torque specs: 18mm bolts = 70Nm + 180deg (do not re-use) 16mm bolts = 50Nm + 90deg (can be re-used once) 13mm bolts = 20Nm + 90deg (can be re-used once) NOTE: Wheel alignment is required after installation WARRANTY: All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.
