CTS Turbo Billet Subframe Insert Kit - ARP Bolts
CTS Turbo Billet Subframe Bushing Insert Kit with ARP Hardware
This kit is designed to eliminate the clunk that is commonly found on MK5’s and MK6’s due to the stretching of OEM bolts, ultimately stretching and failing. This kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points.
Features:

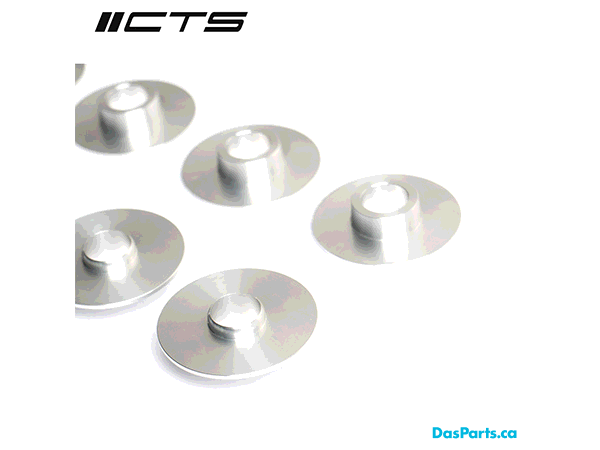

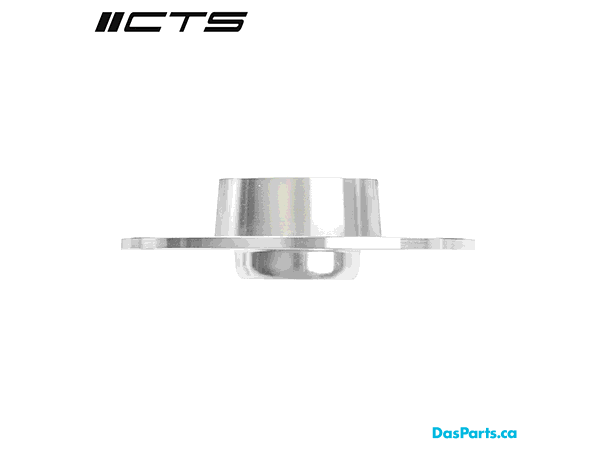

Interlocking subframe shims center the subframe to the body
Machined in house from T6061 Billet aluminum

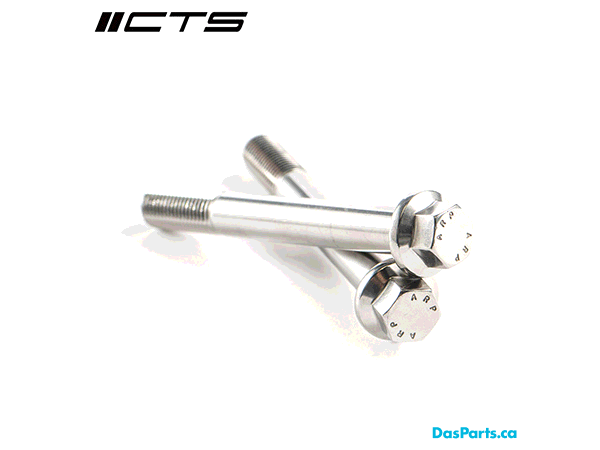

OE replacement stretch bolts (4), and upgraded ARP bolts (2)
Eliminates subframe clunks and shifting

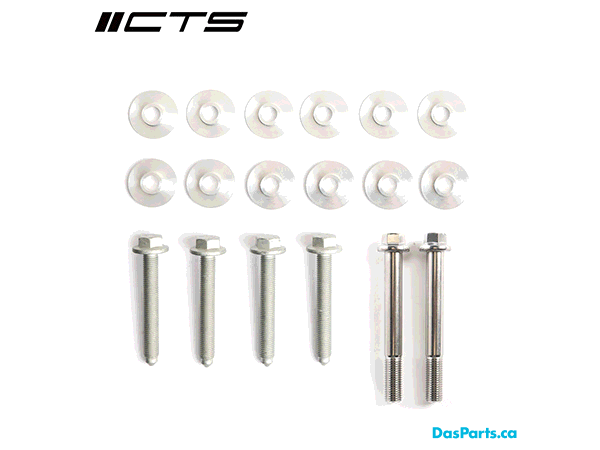

Kit Components:

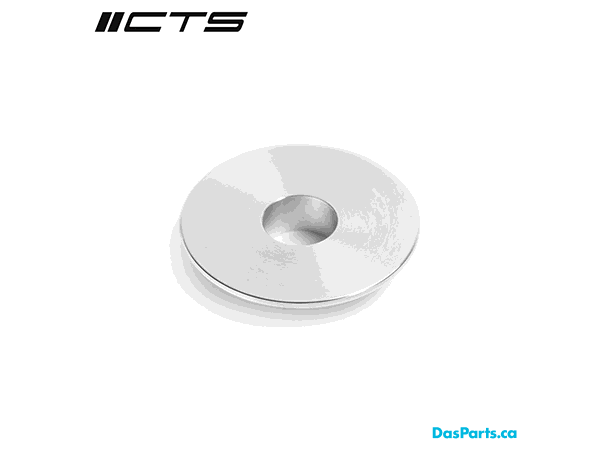

6 x Upper Insert
6 x Lower Insert
4 x Short OE Bolts
2 x Long OE Bolts
Torque specs:
ARP bolts = 85Nm (can be re-used)
18mm bolts = 70Nm + 180deg (do not re-use)
16mm bolts = 50Nm + 90deg (can be re-used once)
13mm bolts = 20Nm + 90deg (can be re-used once)
NOTE: Wheel alignment is required after installation
